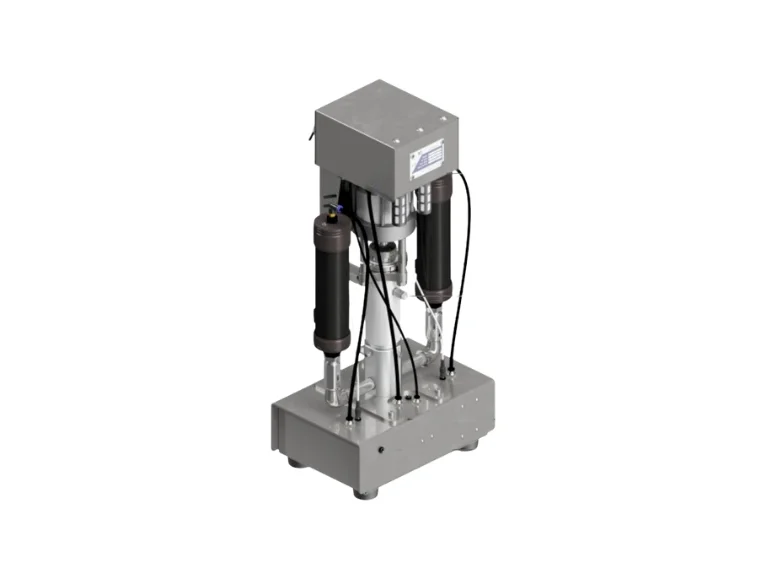

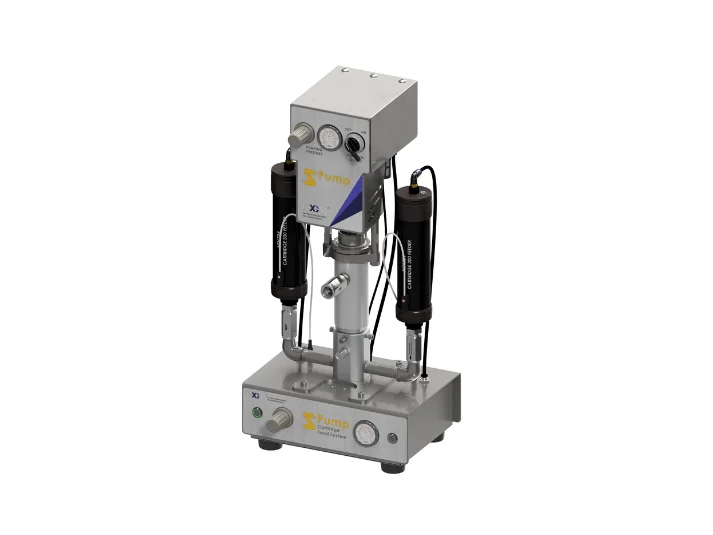

S Pump Double Cartridge Feed – Auto Cartridge Switching

Product Code: 411000D

Dual-cartridge auto-changing feed system for uninterrupted dispensing of adhesives and thermal conductive materials in high-efficient production lines.

Auto Cartridge Switching

Dual cartridge system automatically switches when one is empty for continuous material feed, eliminating downtime for cartridge replacement.

Level Monitoring System

Integrated dual signal lamps and a magnetic level switch detect both u201clowu201d and u201cemptyu201d cartridge conditions, allowing timely cartridge changeover.

Consistent Flow Accuracy

Delivers steady output pressure up to 8.4 MPa (1,220 psi) and a 10 cc per cycle flow rate. The system maintains stable pressure even when switching between cartridges.

Durable Stainless-Steel and Ceramic Structure

All wetted parts are made of stainless steel, UHMWPE, PTFE, and ceramic, providing excellent chemical resistance to acrylic, acrylate, and solvent-based adhesives.

Compact and Service-Friendly Design

Lightweight & compact design ideal for bench-top dispensing setups, with maintenance kit (NXP010) available for quick seal and packing replacement.

Dispensing of gap filler or thermal paste materials
Automated adhesive feeding in 2K mixing or 1K continuous lines
Bonding and sealing for electronics, automotive, and solar modules
Continuous dispensing in automated systems requiring non-stop feed

Model	S Pump – Cartridge Feeding Double – Autochanging
Code	411000D
Accepted max. viscosity (cps)	300,000
Accepted max. density (g/cc)	3.5
Air inlet pressure (MPa)	0.3~0.7
Max. fluid outlet pressure (MPa)	8.4
Flow rate (cc/cycle)	10
Fluid outlet port size	1/2″
Weight (kgs)	21
Size (mm)	320×250×655
Wetted parts	Ceramic, Stainless steel, PTFE, UHMWPE, FKM
Power Supply	24VDC / 0.5A
