High-Precision Dispensing
Delivers exceptional repeatability with ±0.004 ml accuracy per cycle, ensuring consistent shot-to-shot performance for critical applications.

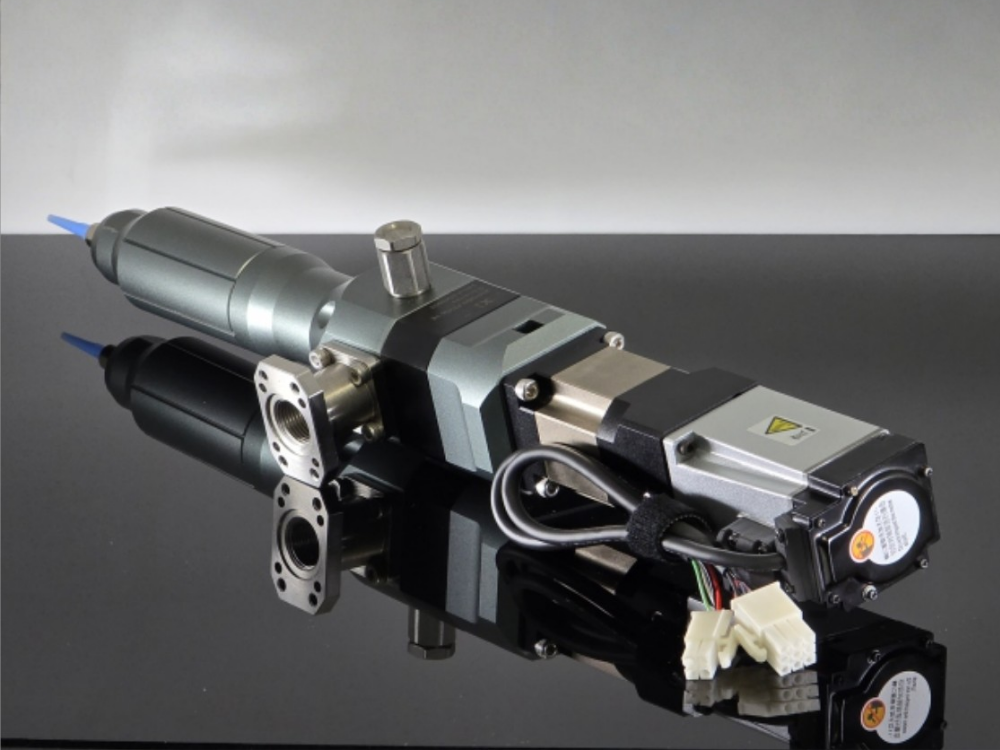

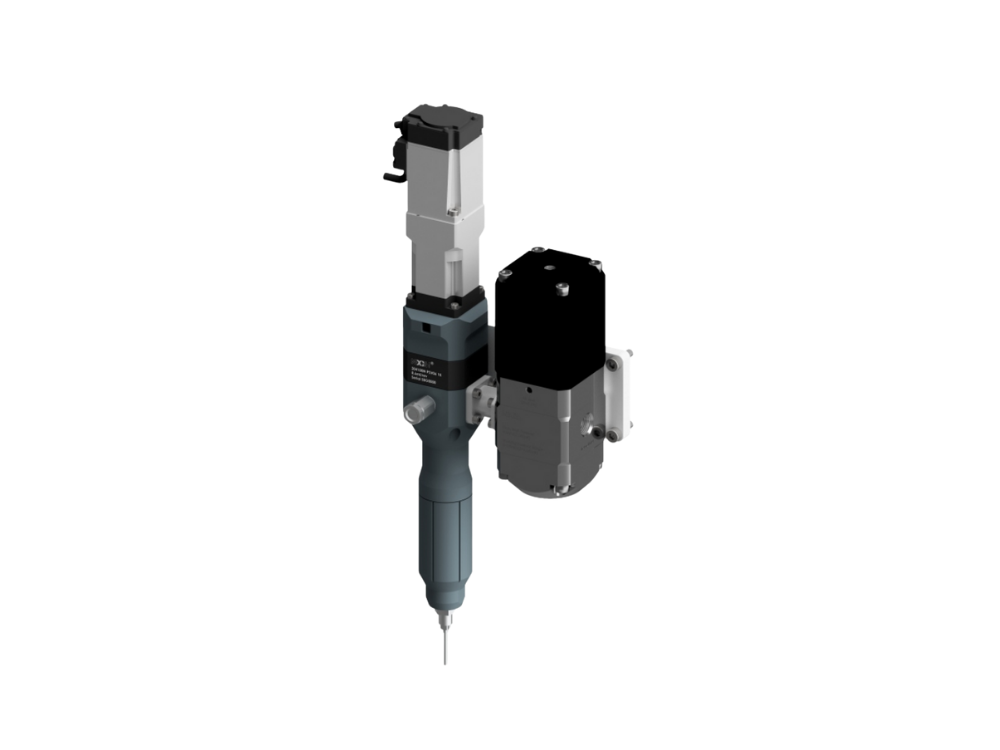

PSV06 – 1K Progressive Cavity Pump for High-Viscosity Materials Dispensing
Product Code: 204100N (Pump) / 204100C (Controller)
Compact progressive cavity pump designed for ultra-precise metering and stable flow of high-viscosity materials such as silicones, greases, and thermal interface materials (TIMs).
Wide Viscosity Compatibility
Capable of handling materials up to 1,000,000 cP, suitable for greases, sealants, silicones, and filled adhesives.
Progressive Cavity Mechanism
Ensures smooth, pulsation-free flow ideal for precise bead or volume control in automated processes.
Durable Rotor & Stator Options
Customizable with stainless steel or ceramic rotors and specialized stators (oil, wear, or chemical-resistant) for optimized lifespan and compatibility.
Intelligent Controller Integration
Siemens PLC-based controller with 4″ HMI enables easy setup, calibration, and remote signal control for fully automated production lines.
Compact & Easy Integration
Lightweight 2.2 kg body with direct mounting compatibility for MX4 or R5003P systems to simplify system design and maintenance.
-
Precision metering of adhesives, greases, sealants, and thermal interface materials.
-
Ideal for single-component applications requiring constant, bubble-free dispensing.
-
TIM and underfill dispensing for PCB assembly.
-
Sealant application for sensors, ECUs, and connectors.
- Battery cell bonding and sealing.
- Gasket, bead, and dot dispensing processes.
| Model | PSV06 1K – Dispense | |
|---|---|---|
| Code | 204100N | |
| Flow rate | 0.6 ml/rev | |
| Accuracy | ±0.004 ml @ 0.6 ml | |
| Max. Dispensing speed | 1.2 ml/s | |
| Recommended Dispensing speed (HV) | In 0.4 ml/s | |
| Max. viscosity applicable | 1,000,000 cps | |
| Inlet port | PT(f) 3/8″ | |
| Outlet port | Double luer lock | |
| Max. Inlet pressure | 1.2 MPa | |
| Max. Electric wire length | 10 M (standard 1.5 M) | |
| Weight | 2.2 kg | |
| Model | PSV06 1K – Controller | |
|---|---|---|
| Code | 204100C | |
| Power supply | AC220V 50/60Hz, 150W | |
| Air pressure supply | 0.4~0.8MPa (6pi) | |
| Air outlet port | 3-6pi (1-always, 2-relay) | |
| PLC | Siemens Simatic S7-200 Smart | |
| HMI | Siemens KTP400 Basic 4″ | |
| External signal connector | M16-2pin (contact) | |
| Pressure sensor connection (3wire) | DC24V, 4~20mA (analog signal) | |
| Ext. signal out | run / finish / warning / solenoid | |
| Size | 320 × 310 × 165 mm (L) | |
| Weight | 8 kg | |
PSV06 - 1K Progressive Cavity Pump Instruction Manual
