High Pressure Performance (Up to 350 bar)
Ensures stable and continuous material feed, even for highly viscous compounds up to 1,000,000 cps.

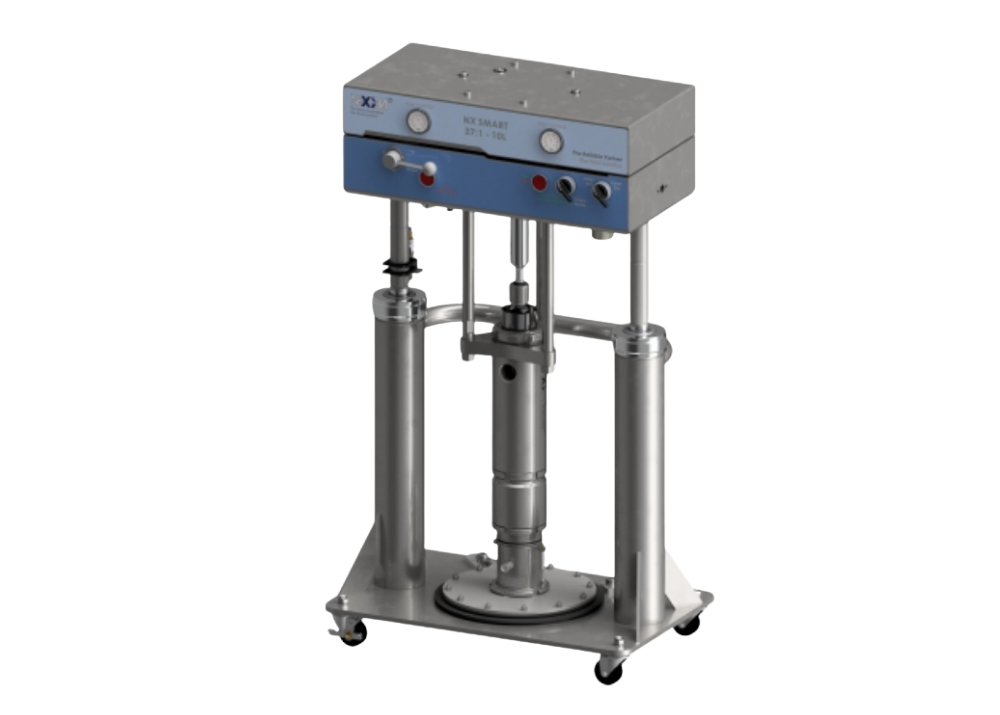

NX SMART Series Feed System
Product Code: NX SMART
Compact, smart, and durable feed pumps engineered for precise and reliable delivery of high-viscosity adhesives, gap fillers, sealants, and greases across diverse industrial applications.
Compact & Integrated Design
Space-saving configuration with simplified air control panel and easy installation in any production line.
Material Compatibility
Handles wide viscosity range and density (1 u2013 3.5 g/cc) with corrosion-resistant wetted parts (Stainless Steel, Ceramic, Carbon steel, UHMWPE, PTFE).
Maintenance-Friendly Structure
No-ball or ball-type lower pumps designed for minimal wear, easy disassembly, and quick seal replacement.
Smart Non-Stop Feeding Option
Dual-pump interlock system enables continuous 1K or 2K supply without air entrainment during pail changeover.
Low-Noise & Operator-Friendly Design
Pneumatic operation minimizes vibration and noise, creating a quieter and safer workplace.
- TIM (Thermal Interface Material) & gap-filler dispensing for heat-management modules
- FIPG/CIPG gasketing of engine covers, housings, and lighting assemblies
- Structural bonding in BIW or interior panel production
- Lubricant and grease feeding for gearboxes, bearings, and brake systems
- 1K/2K adhesive feeding for production automation lines
- Potting of sensors, connectors, and PCBs with silicone or epoxy compounds
| Model | C2/S2 | C3/S3 | C6/S6 | C7 | C8 |
|---|---|---|---|---|---|
| Max. air inlet pressure (MPa/psi) | 0.7 / 100 | ||||
| Pressure ratio | 30:1 | 12:1 | 12:1 | 60:1 | 37:1 |
| Flow rate (LPM) | 5 | 1 | 10 | ||
| Max. Acceptable viscosity (cps) | 1,000,000 | 600,000 | 300,000 | 2,000,000 | |
| Max. Acceptable density (g/cc) | 4 | ||||
| Glue outlet port size | PT(f) 1/2″ | PT(f) 1″ | |||
| Weight (kgs) | 90 | 126 | |||
NX Series Digit System:
1st Digit : Lower pump model.
C – Max Life lower pump
S – Stainless steel lower pump
2nd Digit : Package model.
1 – NXA200 50:1/50cc
2 – NXA100 30:1/50cc
3 – NXA050 12:1/50cc
4 – NXA100 25:1/55cc(ball type)
5 – NXA050 10:1/55cc(ball type)
6 – NXA050A 12:1/10cc
7 – NXA500 60:1 / 10LPM
9 – Customizing

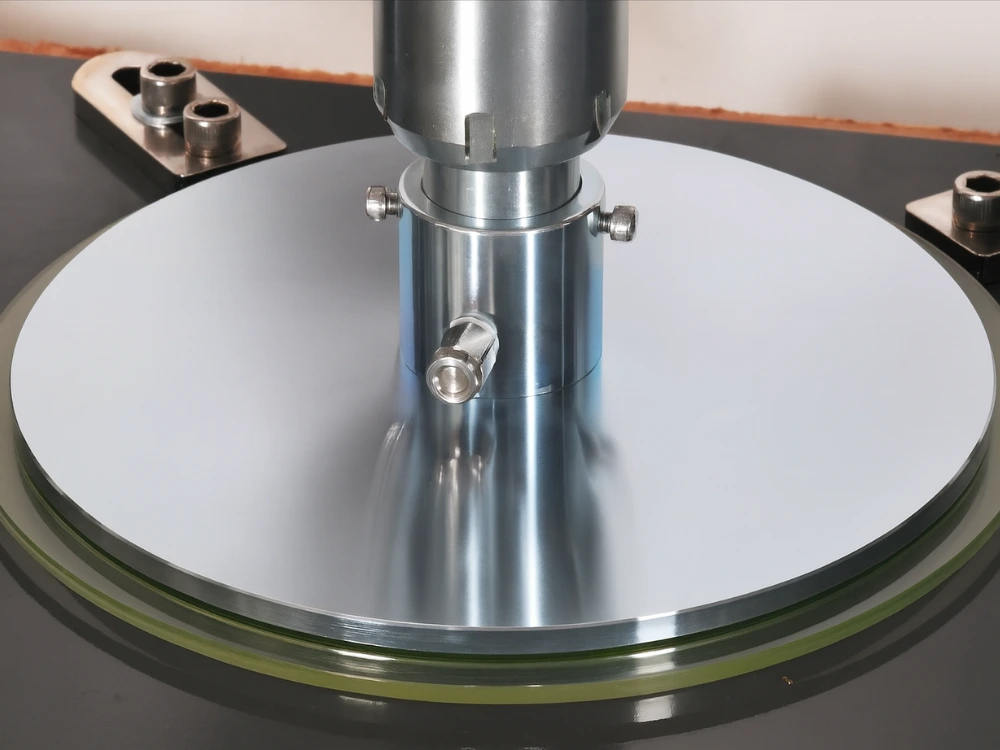

3rd Digit : Platen type.
A – 1 Gallon standard
B – 5 Gallon standard(material saving)
C – 5 Gallon(HV)
D – 55 Gallon
S – Bare pump only
E~Z – Customized Can size/design
4th Digit : Option (pressure control interlocked).
0 – None
1 – R5025P (Pressure dampener/regulator/shutoff)
5th Digit : Option (manifold/filter).
* Grease, Low viscosity materials only
0 – None
1 – Station Filter(no mesh) SST
2 – Station Filter(#30) SST
3 – Station Filter(#60) SST
4 – Station Filter(#100) SST
6th Digit : Signal Lamp.
0 – None
1 – Signal Lamp (24DCV)
NX Series Feed System Instruction Manual
